EIPC-B115M

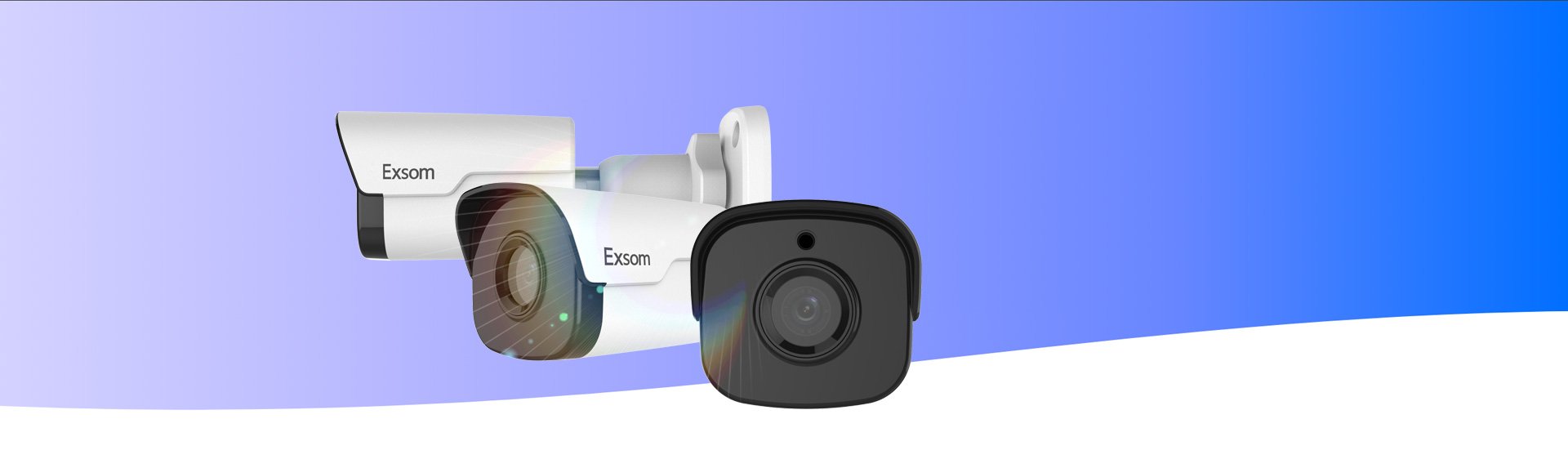

Bullet EIPC-B115M
Overview
Starlight illumination, Day/night functionality, Smart IR ,up to 30 m (98 ft) IR distance, Optical glass window with higher light transmittance, IR anti-reflection window to increase the infrared transmittance, 2D/3D DNR (Digital Noise Reduction), Ultra 265,H.265, H.264, MJPEG, Embedded smart algorithm„, Triple streams, 9:16 corridor format, ONVIF Conformance, Wide temperature range: -35°C to 60°C (-31°F to 140°F), Wide voltage range of ±25%, IP67
Features
Specification
| Camera | |
|---|---|
| Sensor | 1/2.7", 2 Megapixel, CMOS, Progresive scan |
| Lens | 4.0mm@F1.6 |
| Angle of View(H) | 79.7 |
| Shutter | 1/6~1/100000 s, Auto/Manual |
| Minimum Illumination | 0 Lux with IR on, F1.6,AGC ON)0 lux with IR on |
| Day/Night | Automatically Removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | 30 M |
| Defog | Digital Defog |
| WDR | 120 dB |
| Lens Mount | - |
| Iris | - |
| Motor Zoom/focus | - |
| Pan Range/Speed | - |
| Tilt Range/Speed | - |
| Video | |
|---|---|
| Resolution | 5MP |
| Video Compression | H.264, H.265, MJPEG, Ultra 265 |
| Frame Rate | 5MP (259x1944)" Max.25 fps |
| HLC | Supported |
| 9:16 Corridor Mode | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Cross line, Intrusion, Motion detection |
| Intelligent Identification | Audio detection, Cross line, Defocus, Face detection, Intrusion, Motion detection, People counting, Scene change |
| Statistical Analysis | People counting |
| General Function | Access policy, Alarm input, Alarm output, ARP protection, IP address filtering, RSTP authentication, Tampering Alaram, User Authentication, Watermark |
| Storage | |
|---|---|
| Edge Storage | - |
| Network Storage | - |
| Networks | |
|---|---|
| Protocols | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, SSL, TCP, TLS, UDP, UPnP |
| Compatible | API, ONVIF(Profile S,Profile G) |
| Interface | |
|---|---|
| Audio I/O | 1/1 |
| Alarm I/O | |
| Serial Port | - |
| Network | 10M/100M Base - TX Ethernet |
| Video Outpout | - |
| Gneral | |
|---|---|
| Power | 12 V DC ± 25%, Max 6.4W, PoE(IEEE802.3 af) |
| Dimention (L x W x H) | 157.3x62.4x63mm (6.2"x2.5"x2.5") |
| Weight | 0.45 kg (0.99 Ib) |
| Working Environment | -35°C ~+60°C (-35°F~140°F),Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Built-in Mic | Supprted |
