EIPC-P252SL-X33

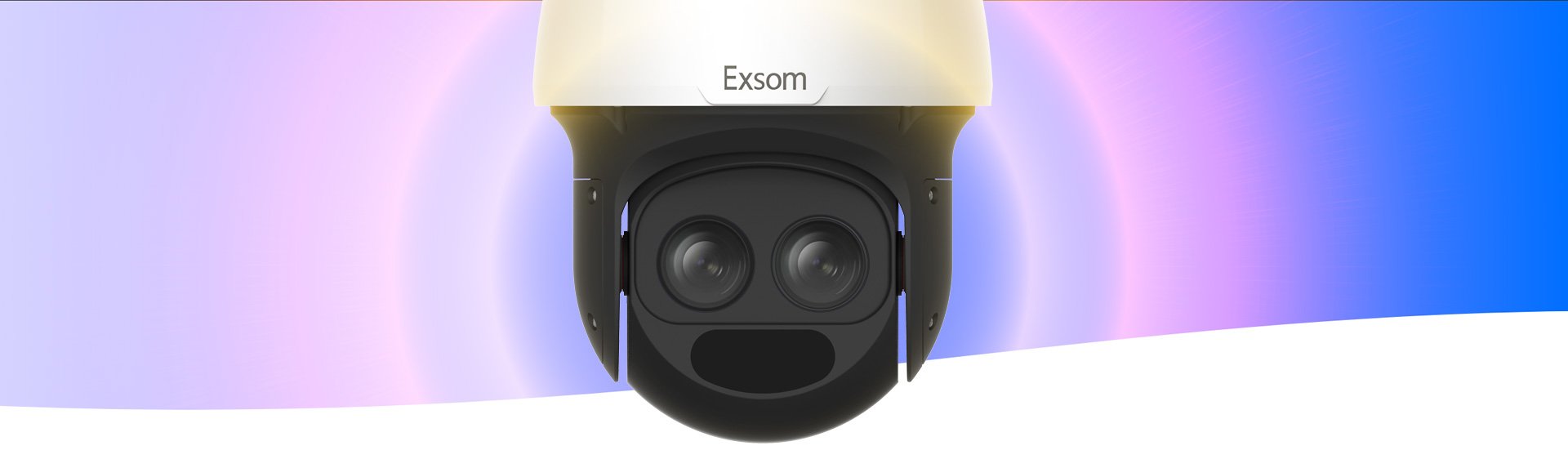

Speed Dome EIPC-P252SL-X33
Overview
Starlight illumination, 33x optical zoom, Accurate and fast focusing, IR anti-reflection window to increase the infrared transmittance, Optical glass window with higher light transmittance, Smart IR,30m(98ft) IR distance, Vari-focal laser: 30m to 500m(1640ft) distance, proportional to optical zoom of camera module, Ultra 265,H.265, H.264, MJPEG, Embedded smart algorithm, Triple streams, Customized OSD, ONVIF Conformance, Special structure and window design to battle bad weather (especially in dusty weather), Innovative snow-removing functionality, Intelligent temperature control technology, More effective heat dissipation system, 6 KV surge protection designed for network interface
Features
Specification
| Camera | |
|---|---|
| Sensor | 1/2.8", progressive scan,2.0megapixel, CMOS |
| Lens | 4.5 ~ 135 mm (30x optical zoom) , AF automatic focusing and motorized zoom lens, Digital Zoom:16x |
| Angle of View(H) | Pan Range:360° (endless), Pan Speed:0.1°/s ~ 240°/s Tilt Range: –15° ~ +90° (auto reverse), Tilt Speed:0.1° ~ 160°/s |
| Shutter | 1/6~1/100000 s, Auto/Manual |
| Minimum Illumination | Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | Automatically Removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | 150m |
| Defog | Digital Defog |
| WDR | DWDR |
| Lens Mount | - |
| Iris | Auto/Manual; F1.5~F4.0 |
| Motor Zoom/focus | - |
| Pan Range/Speed | 360° (endless) , 0.1°/s ~ 240°/s |
| Tilt Range/Speed | –15° ~ +90° (auto reverse), 0.1° ~ 160°/s |
| Video | |
|---|---|
| Resolution | 2MP (1920x1080) |
| Video Compression | H.264, H.265, MJPEG, Ultra 265 |
| Frame Rate | 2MP (1920×1080): Max. 30 fps |
| HLC | Supported |
| 9:16 Corridor Mode | - |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 24 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Cross line, Intrusion, Motion detection |
| Intelligent Identification | Audio detection, Cross line, Defocus, Face detection, Intrusion, Motion detection, People counting, Scene change |
| Statistical Analysis | People counting |
| General Function | Access policy, Alarm input, Alarm output, ARP protection, IP address filtering, RSTP authentication, Tampering Alaram, User Authentication, Watermark |
| Storage | |
|---|---|
| Edge Storage | Micro SD, Up to 128GB |
| Network Storage | ANR |
| Networks | |
|---|---|
| Protocols | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, SSL, TCP, TLS, UDP, UPnP |
| Compatible | API, ONVIF(Profile S,Profile G) |
| Interface | |
|---|---|
| Audio I/O | 1/1 |
| Alarm I/O | |
| Serial Port | - |
| Network | 10M/100M Base - TX Ethernet |
| Video Outpout | - |
| Gneral | |
|---|---|
| Power | 24 V AC±25%, 24 V DC±25%,PoE (PSE Required), Power consumption: 9 ~ 42W |
| Dimention (L x W x H) | Ø227x359.4 mm (Ø8.9” x 14.2”) |
| Weight | 5.28 kg (11.6lb) |
| Working Environment | -40°C ~ +65°C |
| Ingress Protection | IP66 |
| Reset Button | - |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Built-in Mic | - |
