EIPC-P8512-X22

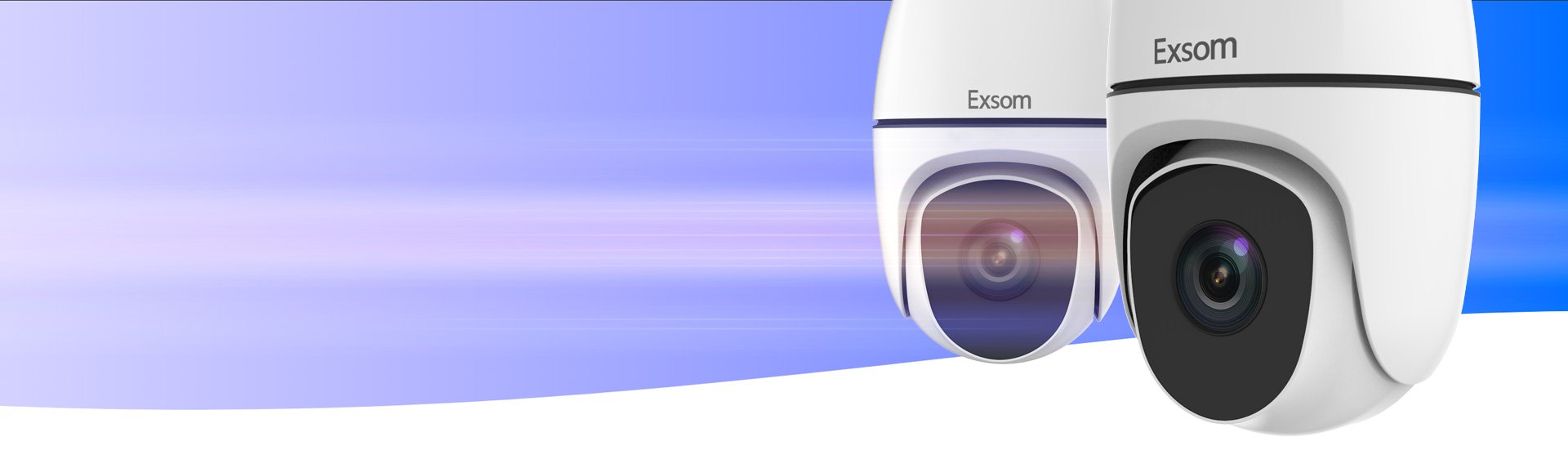

Speed Dome EIPC-P8512-X22
Overview
22X Optical Zoom, Fifth-generation infrared technology, more than 250m (820ft) IR distance, IR anti-reflection window to increase the infrared transmittance, Optical glass window with higher light transmittance, Smart IR, EIS (Electronic Image Stabilization), 12 Megapixel image, H.265, H.264, MJPEG, Embedded smart algorithm, Triple streams, Customized OSD, Network auto-adaptability, ONVIF Conformance, Innovative snow-removing functionality, Intelligent temperature control technology, More effective heat dissipation system, 6 KV surge protection designed for network interface
Features
Specification
| Camera | |
|---|---|
| Sensor | 1/1.7" progressive scan, 12 megapixel, CMOS |
| Lens | 6.5~ 143 mm (22x optical zoom), Digital Zoom |
| Angle of View(H) | Pan Range:360° (endless), Pan Speed:0.1°/s ~ 240°/s Tilt Range: –15° ~ +90° (auto reverse), Tilt Speed:0.1° ~ 160°/s |
| Shutter | 1/6~1/8000 s, Auto/Manual |
| Minimum Illumination | Colour: 0.06 lux (F1.5, AGC ON)0 lux with IR |
| Day/Night | Automatically Removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >55dB |
| IR Range | 250m |
| Defog | Digital Defog |
| WDR | DWDR |
| Lens Mount | - |
| Iris | Auto/Manual; F1.5~F4.0 |
| Motor Zoom/focus | - |
| Pan Range/Speed | 360° (endless) , 0.1°/s ~ 240°/s |
| Tilt Range/Speed | –15° ~ +90° (auto reverse), 0.1° ~ 160°/s |
| Video | |
|---|---|
| Resolution | 12MP (4000×3000) |
| Video Compression | H.264, H.265, MJPEG, Ultra 265 |
| Frame Rate | 12MP (4000×3000): Max. 20 fps, 4K (3840×2160): Max. 30 fps |
| HLC | Supported |
| 9:16 Corridor Mode | - |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Cross line, Intrusion, Motion detection |
| Intelligent Identification | Audio detection, Cross line, Defocus, Face detection, Intrusion, Motion detection, People counting, Scene change |
| Statistical Analysis | People counting |
| General Function | Access policy, Alarm input, Alarm output, ARP protection, IP address filtering, RSTP authentication, Tampering Alaram, User Authentication, Watermark |
| Storage | |
|---|---|
| Edge Storage | Micro SD, Up to 128GB |
| Network Storage | ANR |
| Networks | |
|---|---|
| Protocols | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, SSL, TCP, TLS, UDP, UPnP |
| Compatible | API, ONVIF(Profile S,Profile G) |
| Interface | |
|---|---|
| Audio I/O | 1/1 |
| Alarm I/O | |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base - TX Ethernet |
| Video Outpout | 1BNC, Amplitude 1 V [p,p], Impedance 75 Ω |
| Gneral | |
|---|---|
| Power | 24 V AC±25% (Default), 24 V DC±25%, Power consumption: 16 ~ 56W |
| Dimention (L x W x H) | |
| Weight | 9.69kg(21.4lb) |
| Working Environment | -45°C ~ +70°C |
| Ingress Protection | IP66 |
| Reset Button | - |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Built-in Mic | - |
