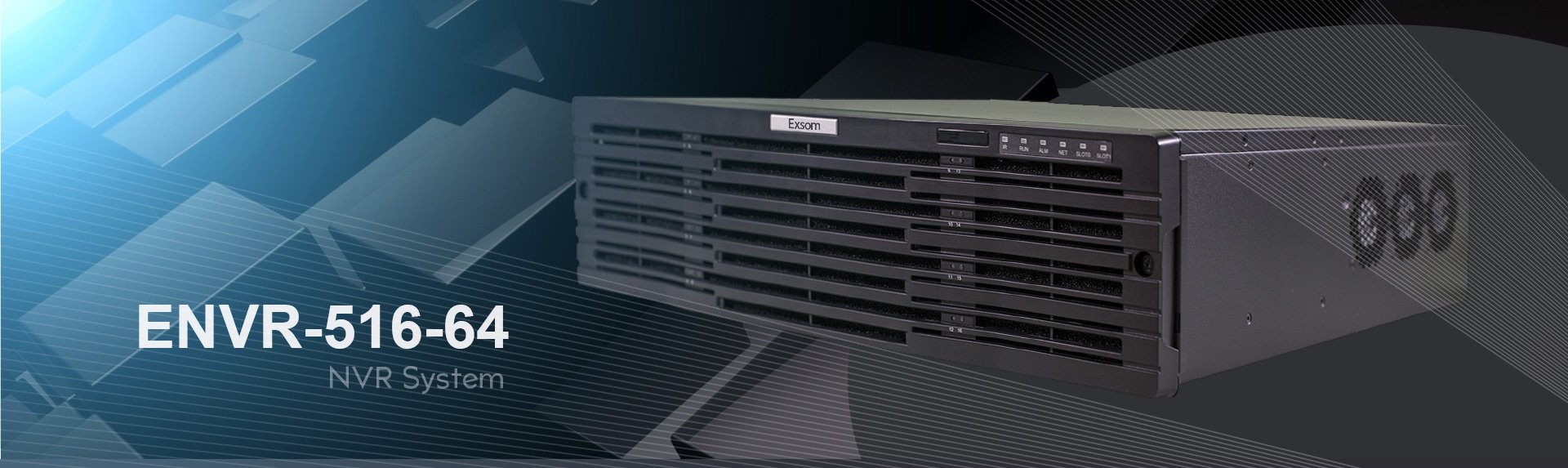

ENVR-516-64
NVR ENVR-516-64
Overview
Support Ultra 265/H.265/H.264 video formats, 64 channel input, Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T, Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution, HDMI1, HDMI2 and VGA independent outputs provided, Up to 12 Megapixels resolution recording, Redundant power supply optional, 2 decoding cards optional, up to 12-ch HDMI, Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable, 16 SATA HDDs, up to 10TB for each HDD, Support 2 miniSAS Interfaces, Support 12V power output, ANR technology to enhance the storage reliability when the network is disconnected, Support cloud upgrade
Features
| ENVR-516-64 | |
|---|---|
| Resolution | 2MP (1920x1080) |
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8-4.0mm@F1.6 |
| Angle of View(H) | - |
| Defog | Digital Defog |
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON)0 Lux with IR on |
| IR Range | - |
| WDR | 120 dB |
| Video Compression | H.264, H.265, MJPEG |
| Frame Rate | 2MP (1920×1080): Max. 30 fps |
| Working Environment | -20°C ~ +60°C |
| Hardware Facilities | IP66 – IK10- Micro SD up to 128GB-Alarm I/O |
| Intelligent Identification | Audio detection, Cross line, Defocus, Face detection, Intrusion, Motion detection, People counting |
Specification
| Camera | |
|---|---|
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8-4.0mm@F1.6 |
| Angle of View(H) | - |
| Shutter | 1/6~1/8000 s, Auto/Manual |
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON)0 Lux with IR on |
| Day/Night | Automatically Removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | - |
| Defog | Digital Defog |
| WDR | 120 dB |
| Lens Mount | C/CS |
| Iris | DC-Iris/P-Iris，DC 5V (4 Pins) |
| Motor Zoom/focus | N/A |
| Pan Range/Speed | - |
| Tilt Range/Speed | - |
| Video | |
|---|---|
| Resolution | 2MP (1920x1080) |
| Video Compression | H.264, H.265, MJPEG |
| Frame Rate | 2MP (1920×1080): Max. 30 fps |
| HLC | Supported |
| 9:16 Corridor Mode | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Supported |
| Motion Detection | Up to 4 areas |
| Smart | |
|---|---|
| Behavior Detection | Cross line, Intrusion, Motion detection |
| Intelligent Identification | Audio detection, Cross line, Defocus, Face detection, Intrusion, Motion detection, People counting |
| Statistical Analysis | People counting |
| General Function | Access policy, Alarm input, Alarm output, ARP protection, IP address filtering, RSTP authentication, Tampering Alaram, User Authentication, Watermark |
| Storage | |
|---|---|
| Edge Storage | Micro SD, Up to 128GB |
| Network Storage | ANR |
| Networks | |
|---|---|
| Protocols | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, SSL, TCP, TLS, UDP, UPnP |
| Compatible | API, ONVIF(Profile S,Profile G) |
| Interface | |
|---|---|
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 (support Pelco-D/P) |
| Network | 10M/100M Base - TX Ethernet |
| Video Outpout | 1BNC, Amplitude 1 V [p,p], Impedance 75 Ω |
| Gneral | |
|---|---|
| Power | 12 V DC ± 25%, Max 5.5W, PoE(IEEE802.3 af) |
| Dimention (L x W x H) | 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
| Weight | 0.48 kg (1.1 lb) |
| Working Environment | -20°C ~ +60°C |
| Ingress Protection | IP66-IK10 |
| Reset Button | Supported |
| Audio | |
|---|---|
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Built-in Mic | - |
